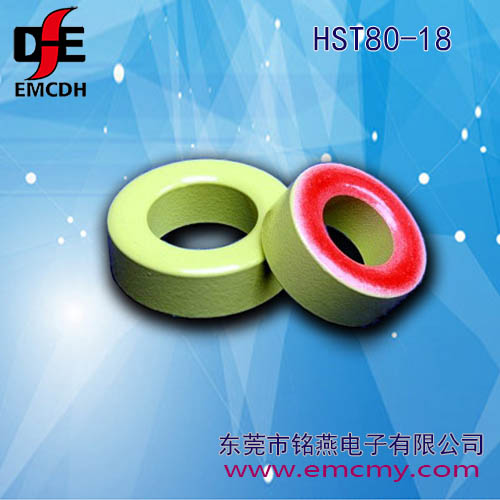

HST80-18

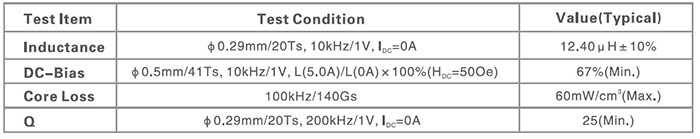

磁损耗低，磁导率高成本较低，有良好的DC特性
OD(in/mm) ID(in/mm) HT(in/mm)
0.795/20.2 0.495/12.6 0.250/6.35
Al: 31 nH ±10%
饱和磁通量(Bms): 10300 Gauss
颜色： 绿/红
磁损耗低，磁导率高成本较低，有良好的DC特性
OD(in/mm) ID(in/mm) HT(in/mm)
0.795/20.2 0.495/12.6 0.250/6.35
Al: 31 nH ±10%
饱和磁通量(Bms): 10300 Gauss
颜色： 绿/红

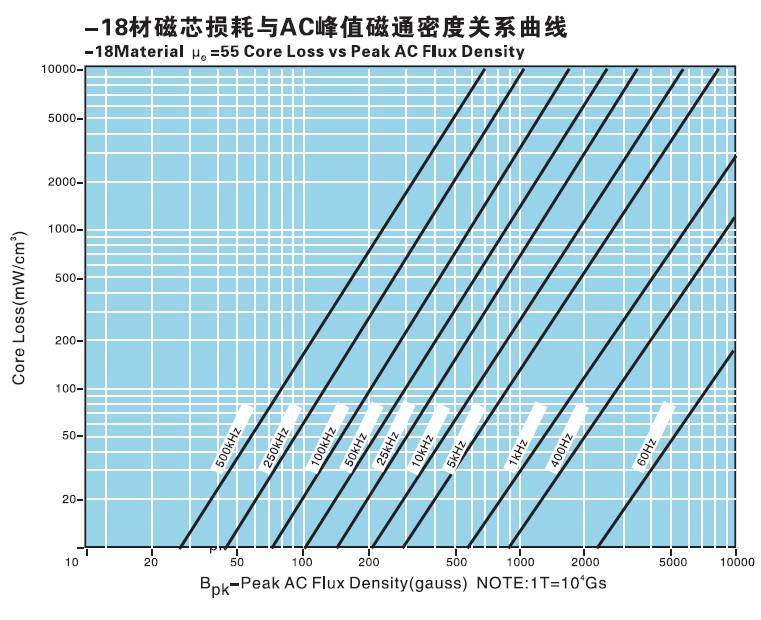

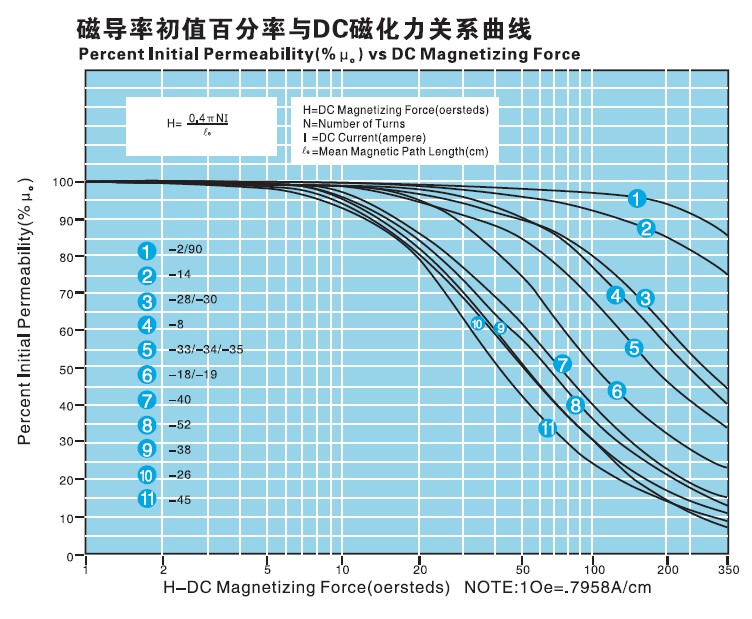

其它铁粉芯18材列表
其它铁粉芯8材列表
| 铭燕料号 | AL | OD | ID | Ht | le | Ae | V | 居磁料号 |
| Part No. | nH/N² | in/mm | in/mm | in/mm | cm | cm² | cm³ | Part No. |
| HST16-18 | 9.5 | .160/4.06 | .078/1.98 | .060/1.52 | 0.93 | 0.015 | 0.014 | T16-18 |
| HST20-18 | 13 | .200/5.08 | .088/2.24 | .070/1.78 | 1.15 | 0.023 | 0.026 | T20-18 |
| HST25-18 | 17 | .225/6.48 | .120/3.05 | .096/2.44 | 1.5 | 0.037 | 0.055 | T25-18 |
| HST26-18 | 41.5 | .265/6.73 | .105/2.67 | .190/4.83 | 1.47 | 0.09 | 0.133 | T26-18 |
| HST27-18 | 18.5 | .280/7.11 | .151/3.84 | .128/3.25 | 1.71 | 0.047 | 0.08 | T27-18 |
| HST30-18 | 22 | .307/7.80 | .151/3.84 | .128/3.25 | 1.84 | 0.06 | 0.11 | T30-18 |
| HST37-18 | 19 | .375/9.53 | .205/5.21 | .128/3.25 | 2.31 | 0.064 | 0.147 | T37-18 |
| HST38-18 | 36 | .375/9.53 | .175/4.45 | .190/4.83 | 2.18 | 0.114 | 0.248 | T38-18 |
| HST44-18 | 25.5 | .440/11.2 | .229/5.82 | .159/4.04 | 2.68 | 0.099 | 0.266 | T44-18 |
| HST50-18 | 24 | .500/12.7 | .303/7.70 | .190/4.83 | 3.19 | 0.112 | 0.358 | T50-18 |
| HST50-18B | 32 | .500/12.7 | .303/7.70 | .250/6.35 | 3.19 | 0.148 | 0.471 | T50-18B |
| HST51-18C | 55 | .500/12.7 | .200/5.08 | .250/6.35 | 2.79 | 0.223 | 0.622 | T51-18C |
| HST60-18 | 34.5 | .600/15.2 | .336/8.53 | .234/5.94 | 3.74 | 0.187 | 0.699 | T60-18 |
| HST68-18 | 29 | .690/17.5 | .370/9.40 | .190/4.83 | 4.23 | 0.179 | 0.759 | T68-18 |
| HST68-18A | 39.5 | .690/17.5 | .370/9.40 | .250/6.35 | 4.23 | 0.242 | 1.03 | T68-18A |
| HST72-18 | 60 | .720/18.3 | .280/7.11 | .260/6.60 | 4.01 | 0.349 | 1.4 | T72-18 |
| HST80-18 | 31 | .795/20.2 | .495/12.6 | .250/6.35 | 5.14 | 0.231 | 1.19 | T80-18 |
| HST80-18B | 46.5 | .795/20.2 | .495/12.6 | .375/9.53 | 5.14 | 0.347 | 1.78 | T80-18B |
| HST90-18 | 47 | .900/22.9 | .550/14.0 | 0.375/9.53 | 5.78 | 0.395 | 2.28 | T90-18 |
| HST94-18 | 42 | .942/23.9 | 560/14.2 | .312/7.92 | 5.97 | 0.362 | 2.16 | T94-18 |
| HST106-18 | 70 | 1.060/26.9 | .570/14.5 | .437/11.1 | 6.49 | 0.659 | 0.659 | T106-18 |
| HST106-18A | 49 | 1.060/26.9 | .570/14.5 | .312/7.92 | 6.49 | 0.461 | 3 | T106-18A |
| HST106-18B | 91 | 1.060/26.9 | .570/14.5 | .575/14.6 | 6.49 | 0.858 | 5.57 | T106-18B |
| HST130-18 | 58 | 1.300/33.0 | .780/19.8 | .437/11.1 | 8.28 | 0.698 | 5.78 | T130-18 |
| HST131-18 | 79 | 1.300/33.0 | .640/16.3 | .437/11.1 | 7.72 | 0.885 | 6.84 | T131-18 |
| HST150-18 | 65 | 1.510/38.4 | .845/21.5 | .437/11.1 | 9.38 | 0.887 | 8.31 | T150-18 |
| HST157-18 | 73 | 1.570/39.9 | .950/24.1 | .570/14.5 | 10.1 | 1.06 | 10.7 | T157-18 |
| HST175-18 | 82 | 1.750/44.5 | 1.070/27.2 | .650/16.5 | 11.2 | 1.34 | 15 | T175-18 |
| HST184-18 | 116 | 1.840/46.7 | .950/24.1 | .710/18.0 | 11.2 | 1.88 | 21 | T184-18 |
| HST200-18 | 67 | 2.000/50.8 | 1.250/31.8 | .550/14.0 | 13 | 1.27 | 16.5 | T200-18 |
| HST200-18B | 120 | 2.000/50.8 | 1.250/31.8 | 1.000/25.4 | 13 | 2.32 | 30 | T200-18B |
| HST201-18 | 164 | 2.000/50.8 | .950/24.1 | .875/22.2 | 11.8 | 2.81 | 33.2 | T201-18 |
| HST225-18 | 67 | 2.250/57.2 | 1.405/35.7 | .550/14.0 | 14.6 | 1.42 | 20.7 | T225-18 |
| HST250-18 | 177 | 2.500/63.5 | 1.250/31.8 | 1.000/25.4 | 15 | 3.84 | 57.4 | T250-18 |
| HST260-18 | 128 | 2.670/67.9 | 1.600/40.7 | 1.000/25.4 | 17.1 | 3.45 | 59 | T260-18 |
| HST300-18 | 58 | 3.040/77.2 | 1.930/49.0 | .500/12.7 | 19.8 | 1.68 | 33.4 | T300-18 |
| HST300-18D | 116 | 3.040/77.2 | 1.930/49.0 | 1.000/25.4 | 19.8 | 3.38 | 67 | T300-18D |
| HST350-18 | 125 | 3.500/89.0 | 2.140/54.4 | 1.000/25.4 | 22.5 | 4.39 | 98 | T350-18 |
| HST400-18 | 96 | 4.000/102 | 2.250/57.2 | .650/16.5 | 25 | 3.46 | 86.4 | T400-18 |
