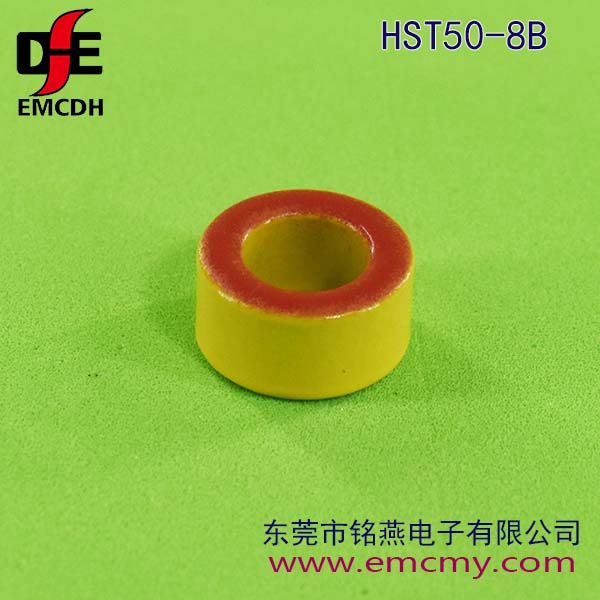

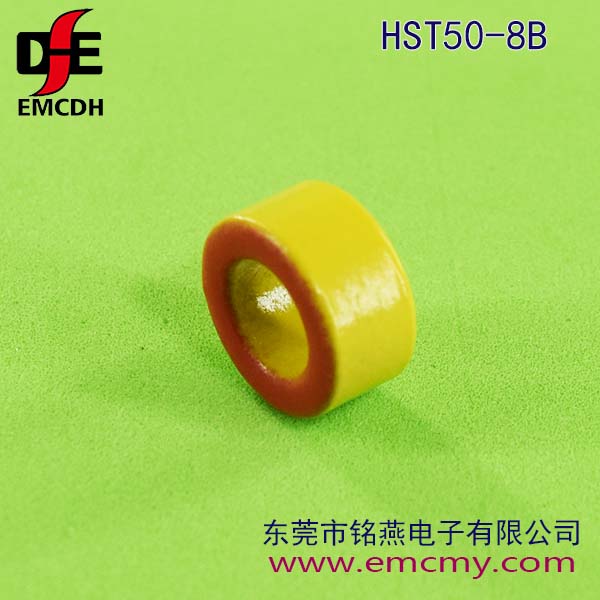

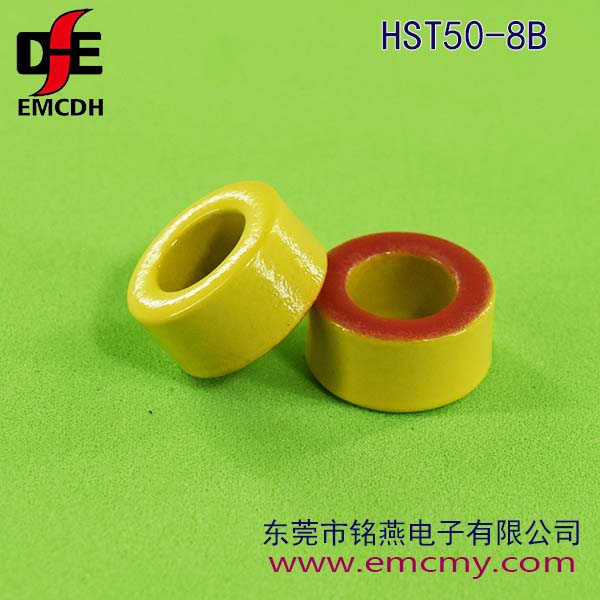

铁粉芯 8材 HST50-8B
高偏流的情况下，磁芯损耗最低，兼且线性良好，
是最好的高频材，也是最贵的材料

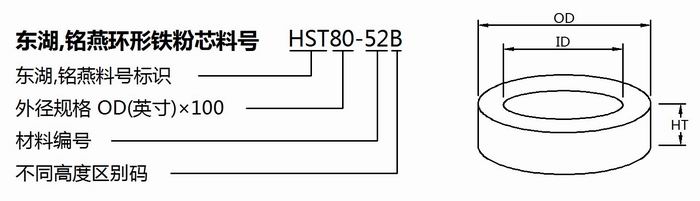

OD(in/mm) ID(in/mm) HT(in/mm)
0.500/12.7 0.303/7.7 0.250/6.35
Al: 23 nH ±10%
饱和磁通量(Bms): 13800 Gauss
高偏流的情况下，磁芯损耗最低，兼且线性良好，
是最好的高频材，也是最贵的材料
OD(in/mm) ID(in/mm) HT(in/mm)
0.500/12.7 0.303/7.7 0.250/6.35
其它铁粉芯8材列表
| 铭燕料号 | AL | OD | ID | Ht | le | Ae | V | 微金属料号 |
| Part No. | nH/N² | in/mm | in/mm | in/mm | cm | cm² | cm³ | Part No. |
| HST16-8 | 6 | .160/4.06 | .078/1.98 | .060/1.52 | 0.93 | 0.015 | 0.014 | T16-8 |
| HST20-8 | 7.8 | .200/5.08 | .088/2.24 | .070/1.78 | 1.15 | 0.023 | 0.026 | T20-8 |
| HST25-8 | 10 | .225/6.48 | .120/3.05 | .096/2.44 | 1.5 | 0.037 | 0.055 | T25-8 |
| HST26-8 | 24 | .265/6.73 | .105/2.67 | .190/4.83 | 1.47 | 0.09 | 0.133 | T26-8 |
| HST27-8 | 11.5 | .280/7.11 | .151/3.84 | .128/3.25 | 1.71 | 0.047 | 0.08 | T27-8 |
| HST30-8 | 14 | .307/7.80 | .151/3.84 | .128/3.25 | 1.84 | 0.06 | 0.11 | T30-8 |
| HST37-8 | 12 | .375/9.53 | .205/5.21 | .128/3.25 | 2.31 | 0.064 | 0.147 | T37-8 |
| HST38-8 | 20 | .375/9.53 | .175/4.45 | .190/4.83 | 2.18 | 0.114 | 0.248 | T38-8 |
| HST44-8 | 18 | .440/11.2 | .229/5.82 | .159/4.04 | 2.68 | 0.099 | 0.266 | T44-8 |
| HST50-8 | 17.5 | .500/12.7 | .303/7.70 | .190/4.83 | 3.19 | 0.112 | 0.358 | T50-8 |
| HST50-8B | 23 | .500/12.7 | .303/7.70 | .250/6.35 | 3.19 | 0.148 | 0.471 | T50-8B |
| HST50-8C | 28.3 | .500/12.7 | .303/7.70 | .335/8.51 | 3.19 | 0.2 | 0.637 | T50-8C |
| HST51-8C | 37 | .500/12.7 | .200/5.08 | .250/6.35 | 2.79 | 0.223 | 0.622 | T51-8C |
| HST60-8 | 19 | .600/15.2 | .336/8.53 | .234/5.94 | 3.74 | 0.187 | 0.699 | T60-8 |
| HST68-8 | 19.5 | .690/17.5 | .370/9.40 | .190/4.83 | 4.23 | 0.179 | 0.759 | T68-8 |
| HST68-8A | 26 | .690/17.5 | .370/9.40 | .250/6.35 | 4.23 | 0.242 | 1.03 | T68-8A |
| HST72-8 | 36 | .720/18.3 | .280/7.11 | .260/6.60 | 4.01 | 0.349 | 1.4 | T72-8 |
| HST80-8 | 18 | .795/20.2 | .495/12.6 | .250/6.35 | 5.14 | 0.231 | 1.19 | T80-8 |
| HST80-8B | 29.5 | .795/20.2 | .495/12.6 | .375/9.53 | 5.14 | 0.347 | 1.78 | T80-8B |
| HST90-8 | 30 | .900/22.9 | .550/14.0 | 0.375/9.53 | 5.78 | 0.395 | 2.28 | T90-8 |
| HST94-8 | 25 | .942/23.9 | 560/14.2 | .312/7.92 | 5.97 | 0.362 | 2.16 | T94-8 |
| HST106-8 | 45 | 1.060/26.9 | .570/14.5 | .437/11.1 | 6.49 | 0.659 | 0.659 | T106-8 |
| HST130-8 | 35 | 1.300/33.0 | .780/19.8 | .437/11.1 | 8.28 | 0.698 | 5.78 | T130-8 |
| HST131-8 | 52.5 | 1.300/33.0 | .640/16.3 | .437/11.1 | 7.72 | 0.885 | 6.84 | T131-8 |
| HST141-8 | 32 | 1.415/35.9 | .880/22.4 | .412/10.5 | 9.14 | 0.674 | 6.16 | T141-8 |
| HST157-8 | 42 | 1.570/39.9 | .950/24.1 | .570/14.5 | 10.1 | 1.06 | 10.7 | T157-8 |
| HST175-8 | 48 | 1.750/44.5 | 1.070/27.2 | .650/16.5 | 11.2 | 1.34 | 15 | T175-8 |
| HST184-8 | 72 | 1.840/46.7 | .950/24.1 | .710/18.0 | 11.2 | 1.88 | 21 | T184-8 |
| HST200-8 | 42.5 | 2.000/50.8 | 1.250/31.8 | .550/14.0 | 13 | 1.27 | 16.5 | T200-8 |
| HST200-8B | 78.5 | 2.000/50.8 | 1.250/31.8 | 1.000/25.4 | 13 | 2.32 | 30 | T200-8B |
| HST201-8 | 104 | 2.000/50.8 | .950/24.1 | .875/22.2 | 11.8 | 2.81 | 33.2 | T201-8 |
| HST225-8 | 42.5 | 2.250/57.2 | 1.405/35.7 | .550/14.0 | 14.6 | 1.42 | 20.7 | T225-8 |
| HST250-8 | 113 | 2.500/63.5 | 1.250/31.8 | 1.000/25.4 | 15 | 3.84 | 57.4 | T250-8 |
| HST300-8 | 37 | 3.040/77.2 | 1.930/49.0 | .500/12.7 | 19.8 | 1.68 | 33.4 | T300-8 |
| HST400-8 | 60 | 4.000/102 | 2.250/57.2 | .650/16.5 | 25 | 3.46 | 86.4 | T400-8 |
| HST520-8 | 65 | 5.200/132 | 3.080/78.2 | .800/20.3 | 33.1 | 5.24 | 173 | T520-8 |
| HST650-8 | 200 | 6.500/165 | 3.500/88.9 | 2.000/50.8 | 39.9 | 18.4 | 734 | T650-8 |
